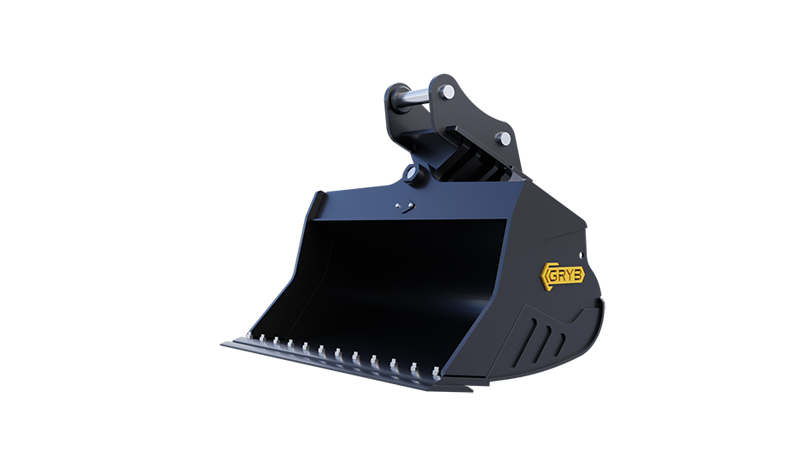

TILT DITCHING BUCKET

product--img
| | | | |
-180° 180°

With its superior design and 45-degree tilt, GRYB's tilt ditching bucket allows flexibility of movement on each side and saves the operator time and money. The tilt ditching bucket comes available in different sizes and capacities for different types of work and backhoes.

  • Hydraulic cylinders with total protection from debris 45° tilt on each side.
  • Hardened chrome-plate axle with greaseable wearing rings.

Product Specifications

Model

Machine Weight (tons)

Weight (lbs)

Width (in)

Capacity (yd3)

GPT120-60E 10 to 15 1420 60" 0.70
GPT120-66F 10 to 15 1510 66" 0.78
GPT120-72F 10 to 15 1660 72" 0.88
GPT160-60F 16 to 19 1475 60" 0.81
GPT160-66F 16 to 19 1570 66" 0.88
GPT160-72F 16 to 19 1760 72" 0.98
GPT200-60G 20 to 23 2500 60" 1.16
GPT200-66G 20 to 23 2650 66" 1.31
GPT200-72G 20 to 23 2800 72" 1.43
GPT270-72H 24 to 29 2425 72" 1.50
GPT270-78H 24 to 29 2700 78" 1.65
GPT300-72I 30 to 39 3380 72" 2.08
GPT300-78I 30 to 39 3580 78" 2.25
GPT300-84I 30 to 39 3700 84" 2.45

All types of excavators.

  • Interchangeable bolted blades are optional.
