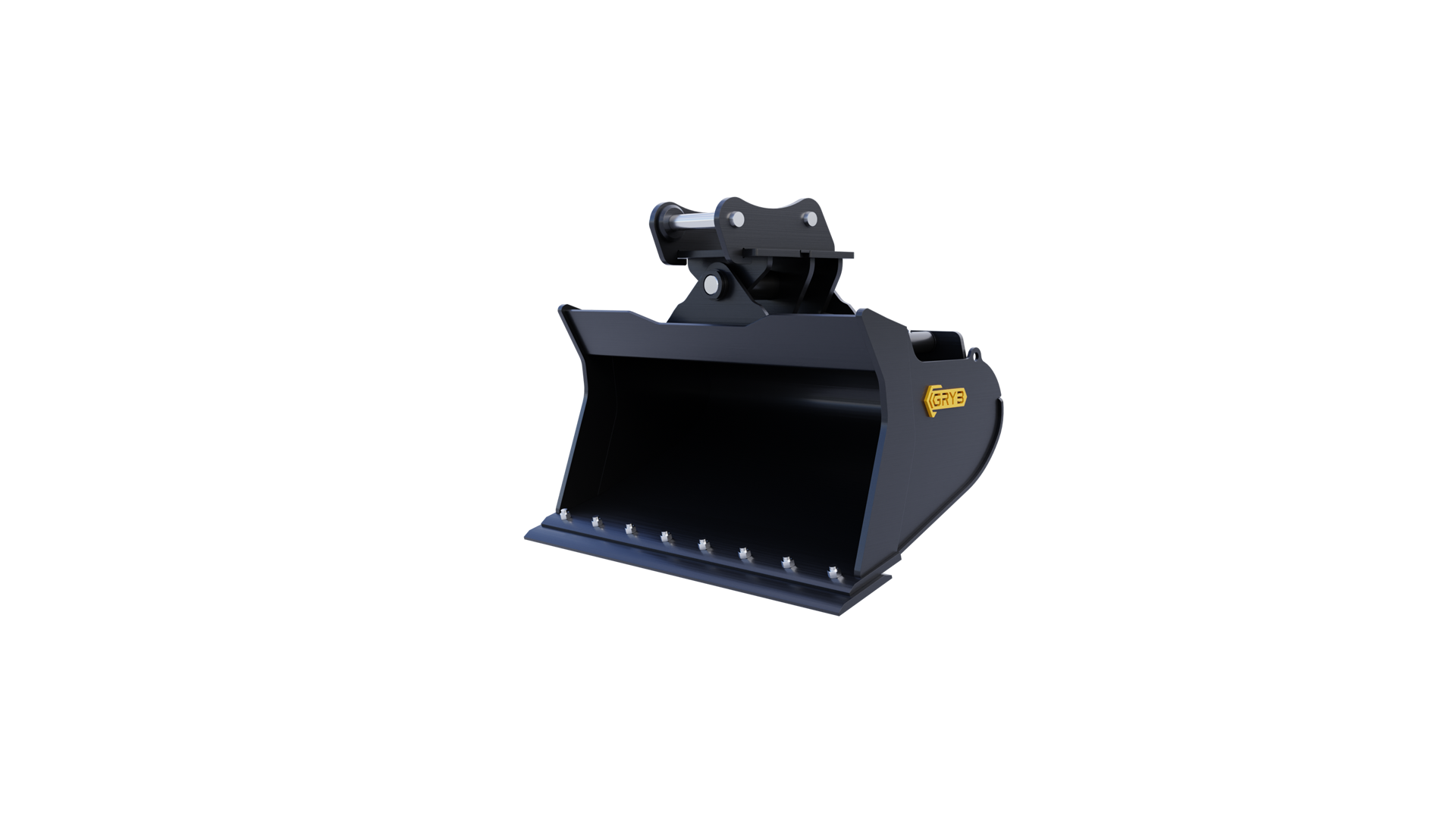

TILT DITCHING BUCKET
Compact excavators
With its superior design and 45-degree tilt, GRYB's tilt ditching bucket allows flexibility of movement on each side as well as saving time and money for the operator. The tilt ditching bucket comes available in different sizes and capacities for different types of work and excavators.
- Hydraulic cylinders with 45° tilt on each side.
- Hardened chrome-plate axle with greaseable wearing rings.
Product Specifications
|
Model |
Machine Weight (tons) |
Weight (lbs) |
Width (in) |
Capacity (yd3) |
|---|---|---|---|---|
| GAT015-30B | 1,5 to 2,2 | 30" | 0.08 | |
| GAT035-36C | 2,3 to 3,9 | 390 | 36" | 0.17 |
| GAT035-42C | 2,3 to 3,9 | 430 | 42" | 0.20 |
| GAT050-36C | 4 to 5,9 | 470 | 36" | 0.24 |
| GAT050-42D | 4 to 5,9 | 510 | 42" | 0.28 |
| GAT050-48D | 4 to 5,9 | 550 | 48" | 0.33 |
| GAT050-60D | 4 to 5,9 | 640 | 60" | 0.42 |
| GAT075-36D | 6 to 9,9 | 720 | 36" | 0.33 |
| GAT075-48D | 6 to 9,9 | 860 | 48" | 0.45 |
| GAT075-60E | 6 to 9,9 | 990 | 60" | 0.57 |
For excavators from 3.5 to 9.9 tons.
- Interchangeable bolted blade optional.
