SYMMETRICAL TRENCHING BUCKET

product--img

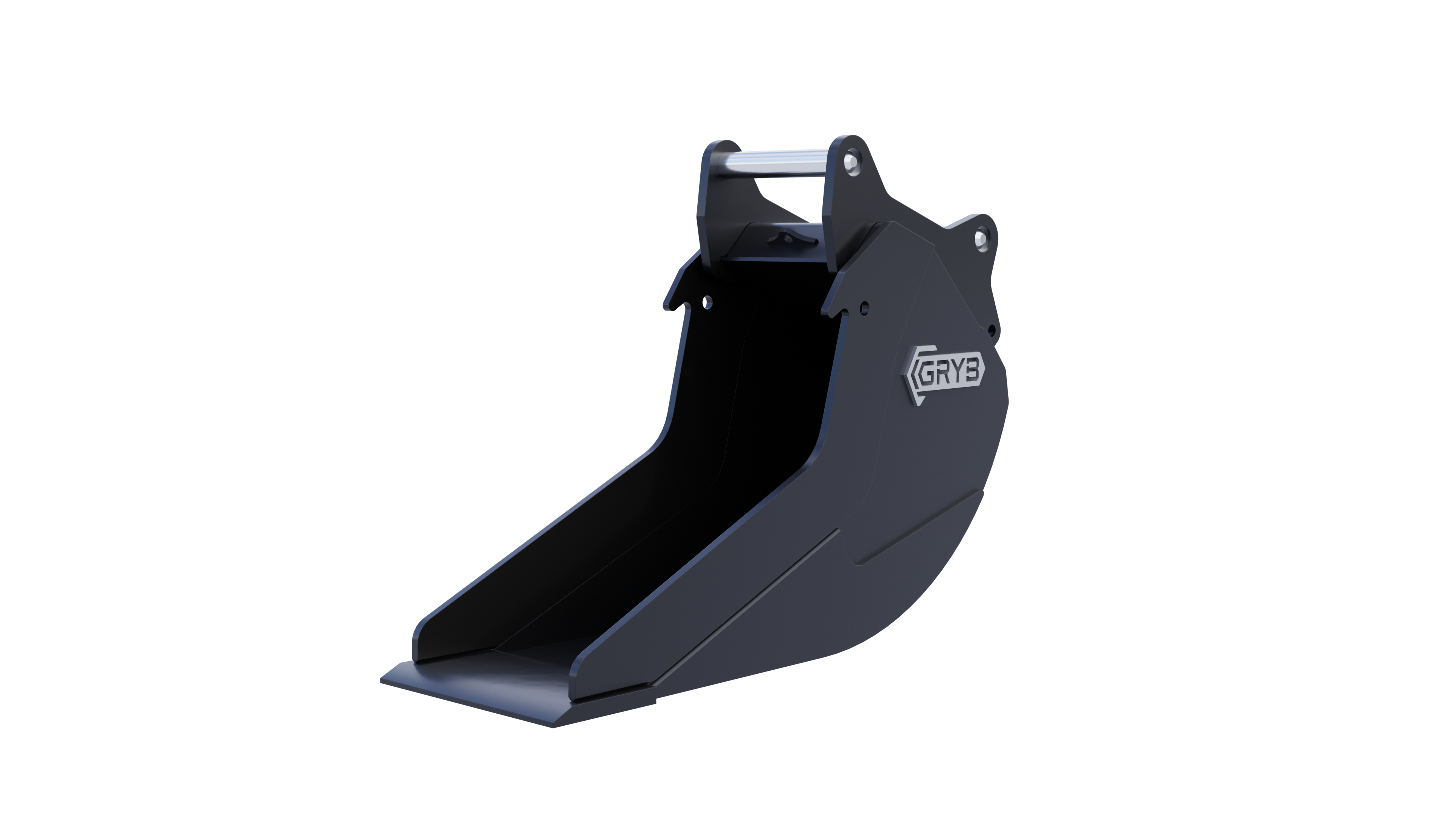

GRYB SYMMETRICAL TRENCHING BUCKET
GRYB SYMMETRICAL TRENCHING BUCKET

Compact excavators

When digging narrow cable trenches, pipe culverts, or drains, GRYB’s trenching buckets make the job easier. The extended front section delivers extra precision when using a tiltrotator. The trenching bucket’s narrow shape and cutting edge enable the bucket to dig deep trenches and work more easily underneath pipes or cables.

  • Dig deep trenches without the tiltrotator having to go below the surface level.
  • Optimized material selection to lower weight without compromising durability.
  • Back wear plates made of abrasion-resistant AR500 steel.

Product Specifications

Model

Machine Weight (tons)

Weight (lbs)

Width (in)

Volume (Yd³)

Number of teeth

GET035-12C0-S40 2,3 to 3,9 165 12 0.1 0
GET035-12C3-S40 2,3 to 3,9 195 12 0.1 3
GET050-14C0-S40 4 to 5,9 220 14 0.16 0
GET050-14C3-S40 4 to 5,9 250 14 0.16 3
GET075-14C0-S45 6 to 9,9 390 14 0.21 0
GET075-14C3-S45 6 to 9,9 425 14 0.21 3
GET075-16C0-S45 6 to 9,9 410 16 0.22 0
GET075-16C3-S45 6 to 9,9 445 16 0.22 3

For excavators from 1.5 to 9.9 tons.

  • Only available with symmetrical lugs.

  • Standard teeth, wide teeth or without teeth.
