Grading Buckets For Rear Backhoe

product--img

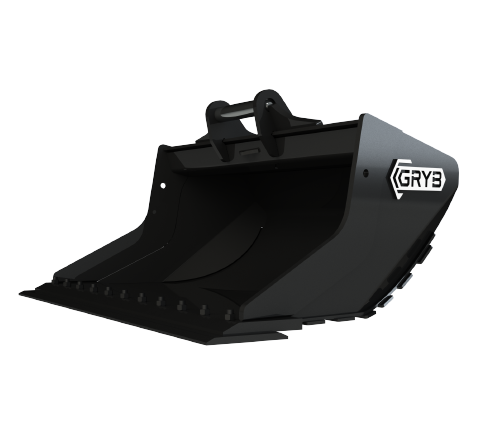

Rear Backhoe Grading Buckets

This grading bucket with minimized corners is a powerful all-around too & the perfect attachment for your Rear Backhoe Machine. Designed for optimal use with our GTR Tiltrotators and quick couplers with a long and flat bottom, our symmetrical grading buckets with minimized corners and rounded back design allow the material to release and fill easier without clogging during digging.

  • The hanger bracket angle allows you to rotate the bucket easily without spilling any material.
  • Stronger materials used make the grading bucket a low-weight-durable construction.
  • One of the longest service lives in the industry.
  • Available with a bolt-on cutting edge.
catalog
Selling sheet
Get a quote

Product Specifications

Model

 Machine Weight (tons)

Weight (lbs)

Width (in)

Volume (Yd³)
GEF035-36C-S40 2,3 to 3,9 260 36 0.18
GEF035-42C-S40 2,3 to 3,9 290 42 0.2
GEF035-48C-S40 2,3 to 3,9 330 48 0.25
GEF050-42D-S40 4 to 5,9 360 42 0.3
GEF050-48D-S40 4 to 5,9 400 48 0.35
GEF075-48D-S45 6 to 9,9 600 48 0.48
GEF075-54E-S45 6 to 9,9 665 54 0.55
GEF120-60E-S60 10 to 15 1140 60 0.75
GEF120-66F-S60 10 to 15 1245 66 0.85
GEF120-96G-S60 10 to 15 1635 96 1.32
GEF160-60F-S60 16 to 19 1340 60 1
GEF160-66G-S60 16 to 19 1465 66 1.15
GEF200-48F-S70 20 to 23 1370 48 0.9
GEF200-66G-S70 20 to 23 1820 66 1.35
GEF200-72G-S70 20 to 23 1995 72 1.5
GEF200-96I-S70 20 to 23 2450 96 2.1
GEF270-72H-S70 24 to 29 2445 72 1.8
GEF270-78H-S70 24 to 29 2640 78 2

All types of backhoes.

  • Must have a symmetrical coupler.

  • Interchangeable bolt-on blade
